본문 바로가기 주메뉴 바로가기
22대 대한민국 국회 국회정보길라잡이 국회의원검색
회원가입 로그인
HOME

정보검색

소장정보 검색

국회도서관 홈으로 정보검색 소장정보 검색
결과 내 검색 동의어 포함
결과 내 검색 동의어 포함

-

목차보기

목차 1

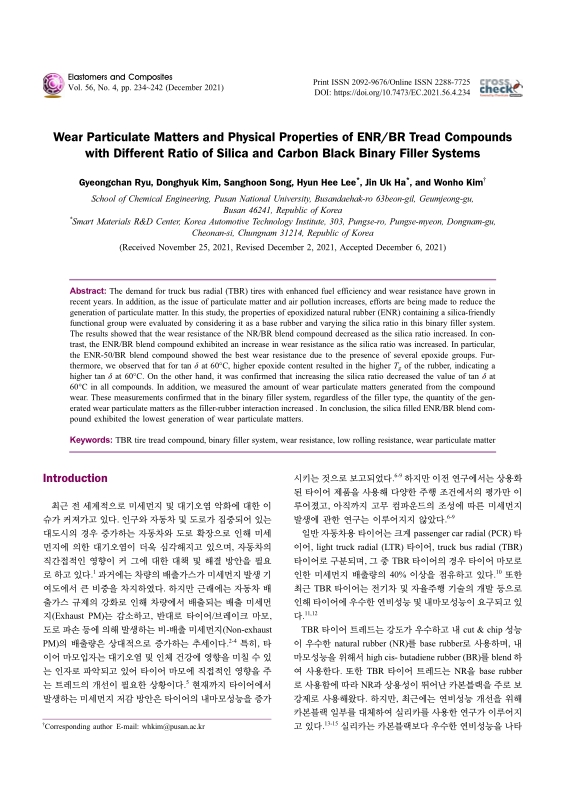

Wear particulate matters and physical properties of ENR/BR tread compounds with different ratio of silica and carbon black binary filler systems / Gyeongchan Ryu ; Donghyuk Kim ; Sanghoon Song ; Hyun Hee Lee ; Jin Uk Ha ; Wonho Kim 1

Abstract 1

Introduction 1

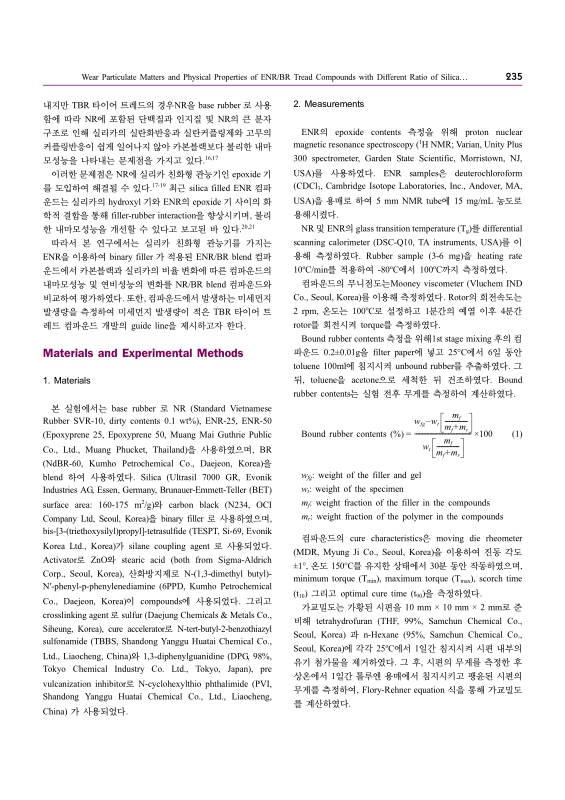

Materials and Experimental Methods 2

1. Materials 2

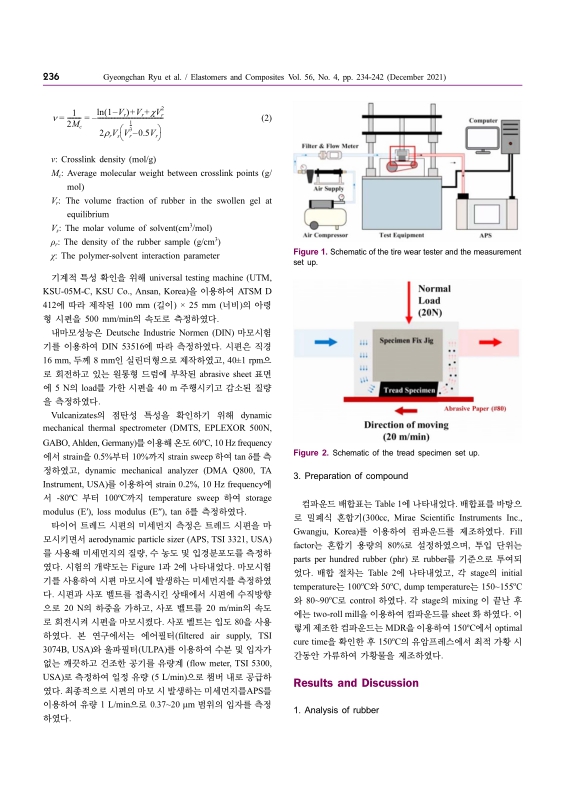

2. Measurements 2

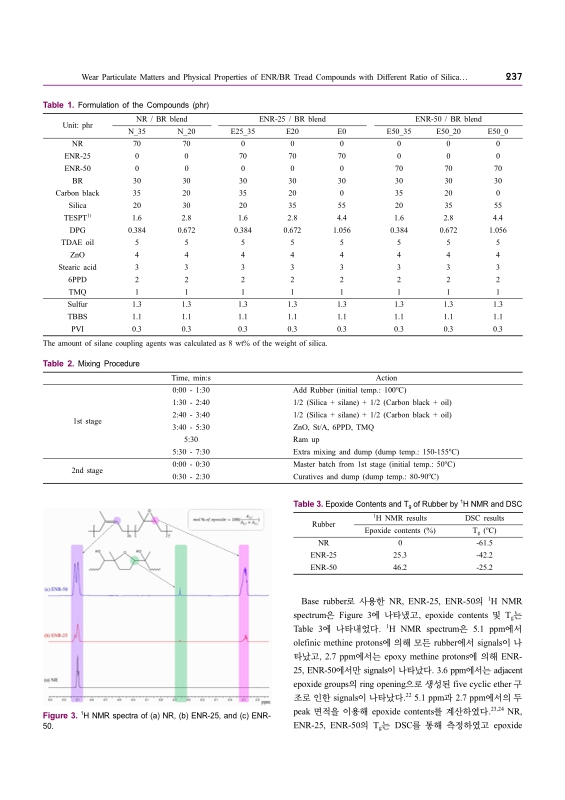

3. Preparation of compound 3

Results and Discussion 3

1. Analysis of rubber 3

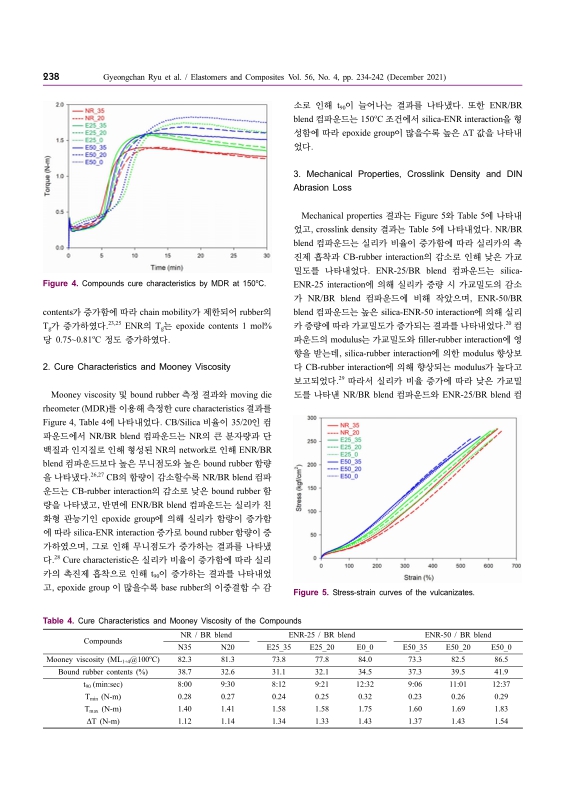

2. Cure Characteristics and Mooney Viscosity 5

3. Mechanical Properties, Crosslink Density and DIN Abrasion Loss 5

4. Dynamic Viscoelastic Properties 6

5. Amount of wear particulate matters generated by rubber compound abrasion 7

Conclusions 7

References 8

초록보기

The demand for truck bus radial (TBR) tires with enhanced fuel efficiency and wear resistance have grown in recent years. In addition, as the issue of particulate matter and air pollution increases, efforts are being made to reduce the generation of particulate matter. In this study, the properties of epoxidized natural rubber (ENR) containing a silica-friendly functional group were evaluated by considering it as a base rubber and varying the silica ratio in this binary filler system.

The results showed that the wear resistance of the NR/BR blend compound decreased as the silica ratio increased. In contrast, the ENR/BR blend compound exhibited an increase in wear resistance as the silica ratio was increased. In particular, the ENR-50/BR blend compound showed the best wear resistance due to the presence of several epoxide groups. Furthermore, we observed that for tan δ at 60°C, higher epoxide content resulted in the higher T g of the rubber, indicating a higher tan δ at 60°C. On the other hand, it was confirmed that increasing the silica ratio decreased the value of tan δ at 60°C in all compounds. In addition, we measured the amount of wear particulate matters generated from the compound wear. These measurements confirmed that in the binary filler system, regardless of the filler type, the quantity of the generated wear particulate matters as the filler-rubber interaction increased . In conclusion, the silica filled ENR/BR blend compound exhibited the lowest generation of wear particulate matters.

권호기사

권호기사 목록 테이블로 기사명, 저자명, 페이지, 원문, 기사목차 순으로 되어있습니다.
기사명 저자명 페이지 원문 목차
(A) study on the effect of petroleum resin on vibration damping characteristics of natural rubber composites Yu Mi Yun, Jin Hyok Lee, Myoung Chan Choi, Jung Wan Kim, Hyun Min Kang, Jong Woo Bae p. 201-208

보기
Effect of phenyl vinyl methyl silicone (PVMQ) on low temperature sealing performance of fluorosilicone composites Jin Hyok Lee, Jong Woo Bae, Myoung Chan Choi, Yu-Mi Yun, Nam-Ju Jo p. 209-216

보기
(A) fabrication and antifogging performance of random polypropylene film containing monoglycerides as antifogging agent Wan Jo, Jin Hwan Park, Seok-Ho Hwang p. 217-222

보기
Effect of molecular weight of epoxidized liquid isoprene rubber as a processing aid on the vulcanizate structure of silica filled NR compounds Gyeongchan Ryu, Donghyuk Kim, Sanghoon Song, Kiwon Hwang, Wonho Kim p. 223-233

보기
Wear particulate matters and physical properties of ENR/BR tread compounds with different ratio of silica and carbon black binary filler systems Gyeongchan Ryu, Donghyuk Kim, Sanghoon Song, Hyun Hee Lee, Jin Uk Ha, Wonho Kim p. 234-242

보기
Wear particulate matters and physical properties of silica filled ENR/BR tread compounds according to the BR contents Gyeongchan Ryu, Donghyuk Kim, Sanghoon Song, Hyun Hee Lee, Jin Uk Ha, Wonho Kim p. 243-249

보기
Effect of doping state on photoresponse properties of polypyrrole Jongwan Choi p. 250-253

보기
Synthesis and antimicrobial properties of the chitosan derivatives Eun Kyoung Lee, You Kyoung Kim p. 254-263

보기

추천서가 (다양한 추천 자료를 만나보세요)

권호기사보기

권호기사 목록 테이블로 기사명, 저자명, 페이지, 원문, 기사목차 순으로 되어있습니다.
기사명 저자명 페이지 원문 기사목차
