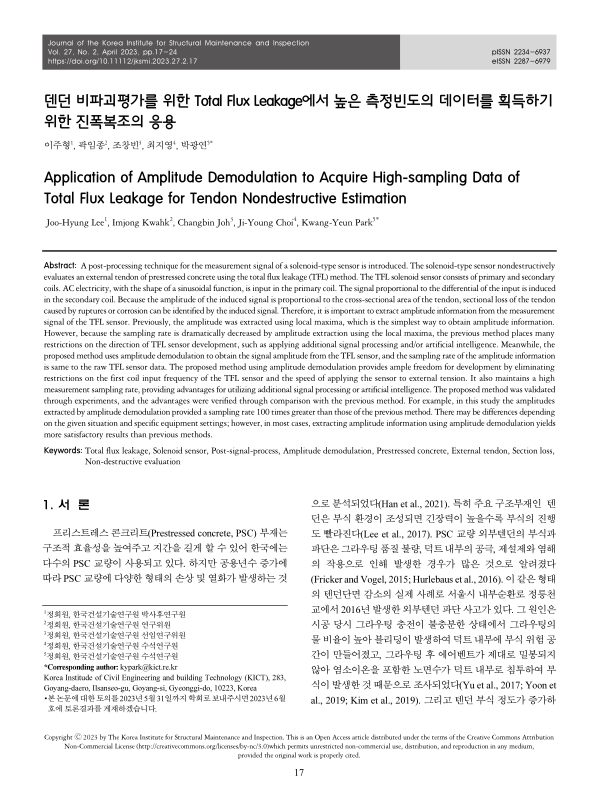

덴던 비파괴평가를 위한 Total Flux Leakage에서 높은 측정빈도의 데이터를 획득하기 위한 진폭복조의 응용 = Application of amplitude demodulation to acquire high-sampling data of Total Flux Leakage for tendon nondestructive estimation / 이주형 ; 곽임종 ; 조창빈 ; 최지영 ; 박광연 1

Abstract 1

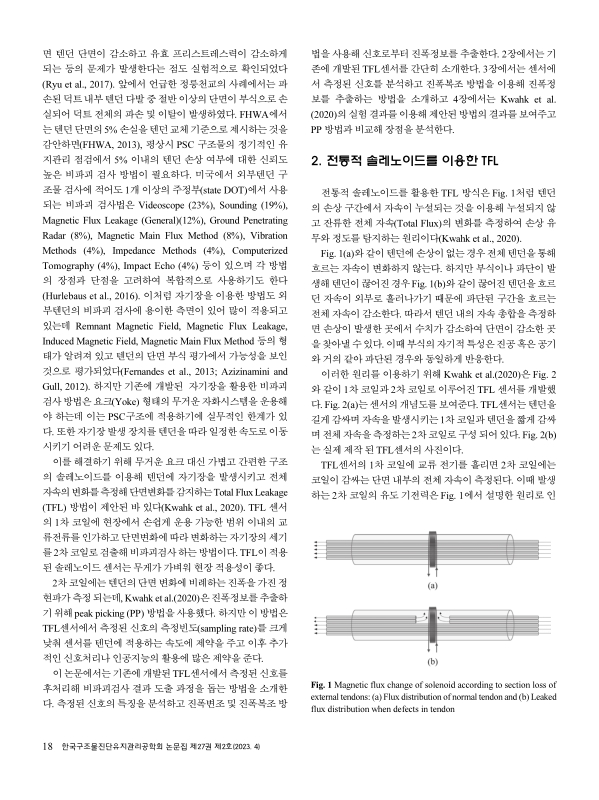

1. 서론 1

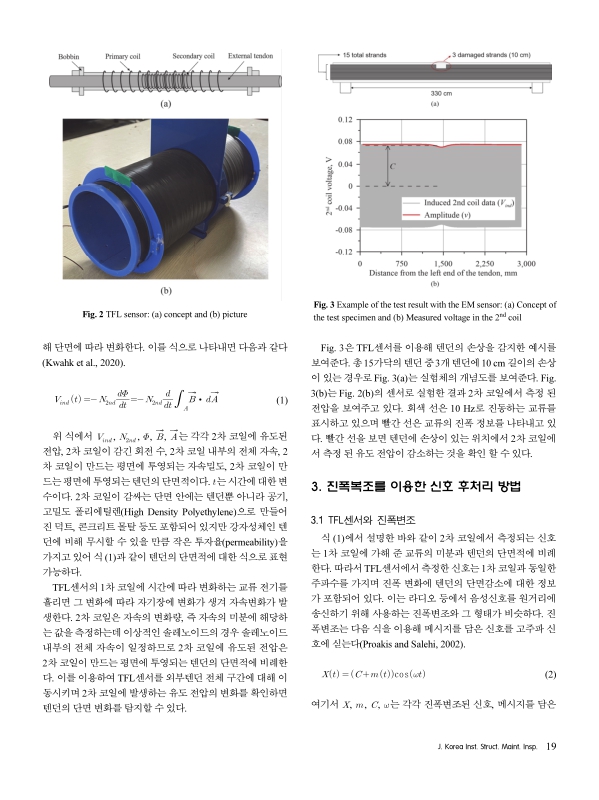

2. 전통적 솔레노이드를 이용한 TFL 2

3. 진폭복조를 이용한 신호 후처리 방법 3

3.1. TFL센서와 진폭변조 3

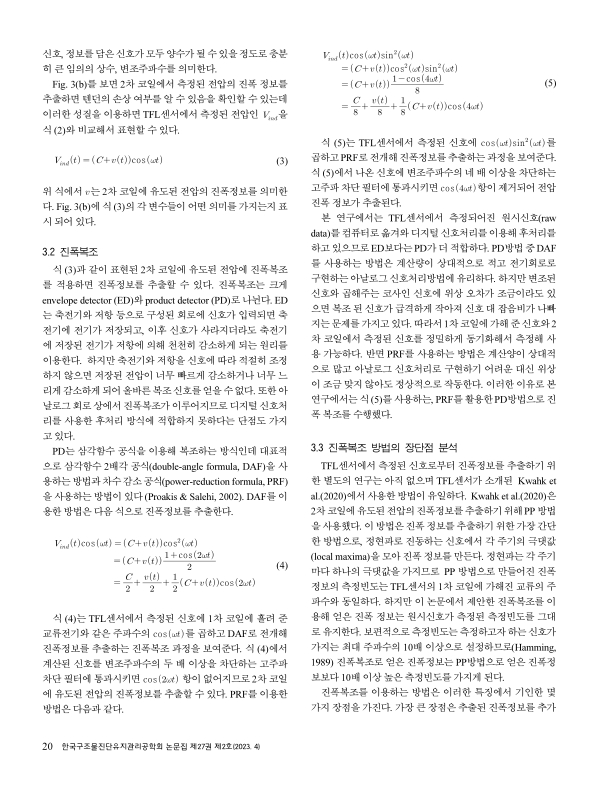

3.2. 진폭복조 4

3.3. 진폭복조 방법의 장단점 분석 4

4. 실측예제 5

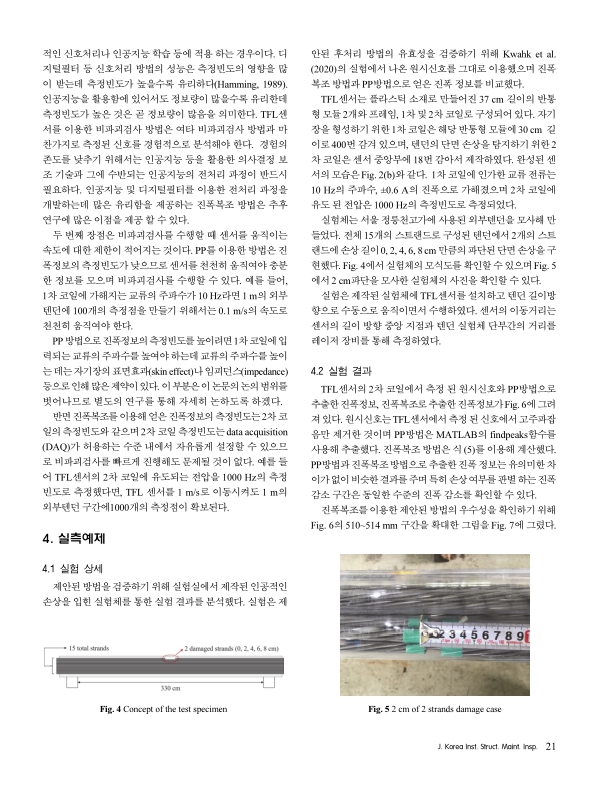

4.1. 실험 상세 5

4.2. 실험 결과 5

5. 결론 7

References 8

요지 8

초록보기

이 논문은 total flux leakage (TFL) 방법을 이용해 외부텐던을 비파괴검사 하는 솔레노이드 형태의 센서의 측정 신호를 후처리하는방법을 소개한다. 기존에 개발된 TFL 솔레노이드 센서는 1차 코일과 2차 코일로 이루어져 1차 코일에 정현파 형태의 교류를 입력하면 2차 코일에 그 미분에 비례하는 신호가 측정된다. 이때 진폭은 텐던의 단면에 비례하므로 파단 및 부식 여부를 확인할 수 있다. 따라서 TFL센서의 측정신호에서 진폭정보를 추출 하는 것이 중요한데 기존에는 단순히 극댓값을 모아 진폭정보를 취득했다. 하지만 이 방법을 사용하면 측정빈도가크게 낮아져 추가적인 신호처리 및 인공지능 적용에 많은 제약이 생긴다. 이 논문은 높은 측정빈도를 가진 진폭정보를 추출하기 위해 진폭복조를 응용해 진폭정보를 획득하는 방법을 제시한다. 진폭복조를 이용해 진폭정보를 취득하면 측정빈도를 원시신호와 동일한 수준으로 유지할수 있다. 이 방법은 TFL센서의 1차 코일 입력 주파수 선택과 센서를 외부텐던에 적용하는 속도 등에 제약을 없애주어 개발 방향에 많은 자유도를 부여한다. 또한 높은 측정빈도를 유지하므로 추가적인 신호처리나 인공지능 등을 활용 하는데 유리함을 제공한다. 제안된 방법은 실내실험을 통해 검증 되었으며 기존 방법과 비교해 어떤 장점이 있는지 분석했다. 제시된 예제의 경우 진폭복조를 사용한 방법이 기존 방법에 비해 100배 높은 측정빈도를 제공 하는 것을 확인 할 수 있었다. 주어진 상황과 구체적인 장비 설정에 따라 차이가 있겠지만 대부분의 경우 진폭복조를사용해 진폭정보를 추출하면 기존 방법 대비 만족할만한 결과를 얻을 수 있을 것이다.
