A reliable steady/transient hydro-elastic analysis is developed for flexible (composite) marine propeller blade design which deforms according to its environmental load (ship speed, revolution speed, wake distribution, etc.) Hydro-elastic analysis based on CFD and FEM has been widely used in the engineering field because of its accurate results however it takes large computation time to apply early propeller design stage. Therefore the analysis based on a boundary element method-Finite Element Method (BEM-FEM) Fluid-Structure Interaction (FSI) is introduced for computational efficiency and accuracy. The steady FSI analysis, and its application to reverse engineering, is designed for use regarding optimum geometry and ply stack design. A time domain two-way coupled transient FSI analysis is developed by considering the hydrodynamic damping effects of added mass due to fluid around the propeller blade. The analysis makes possible to evaluate blade strength and also enable to do risk assessment by estimating the change in performance and the deformation depending on blade position in the ship’s wake. To validate this hydro-elastic analysis methodology, published model test results of P5479 and P5475 are applied to verify the steady and the transient FSI analysis, respectively. As the results, the proposed steady and unsteady analysis methodology gives sufficient accuracy to apply flexible marine propeller design.

권호기사

권호기사 목록 테이블로 기사명, 저자명, 페이지, 원문, 기사목차 순으로 되어있습니다.
기사명 저자명 페이지 원문 목차
Ultimate strength performance of tankers associated with industry corrosion addition practices Do Kyun Kim, Han Byul Kim, Xiaoming Zhang, Chen Guang Li, Jeom Kee Paik pp.507-528

Reynolds and froude number effect on the flow past an interface-piercing circular cylinder Bonguk Koo, Jianming Yang, Seong Mo Yeon, Frederick Stern pp.529-561

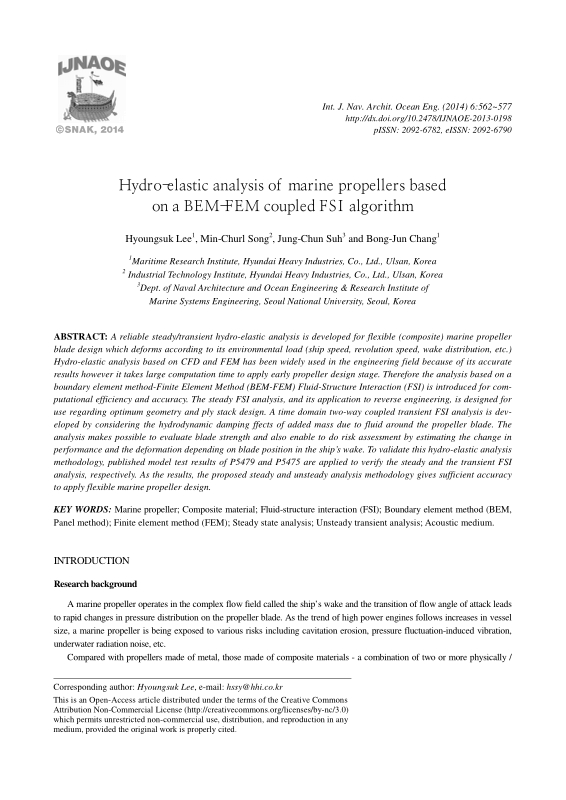

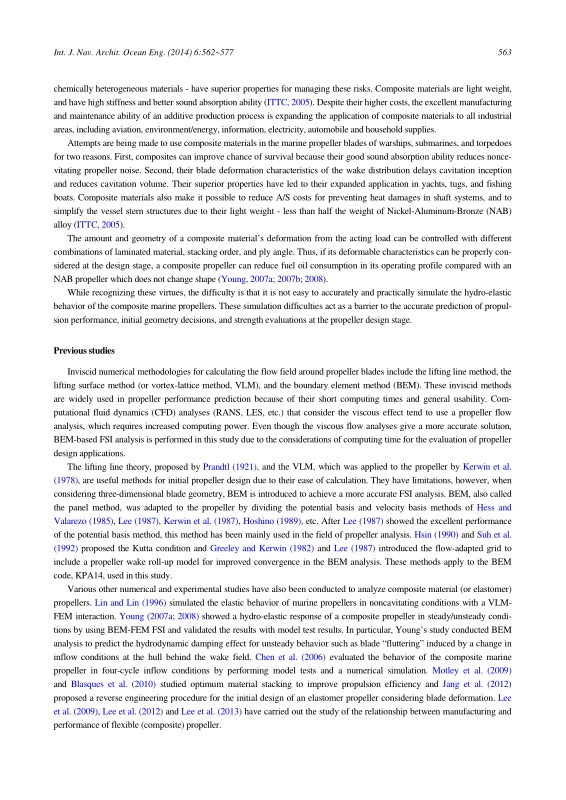

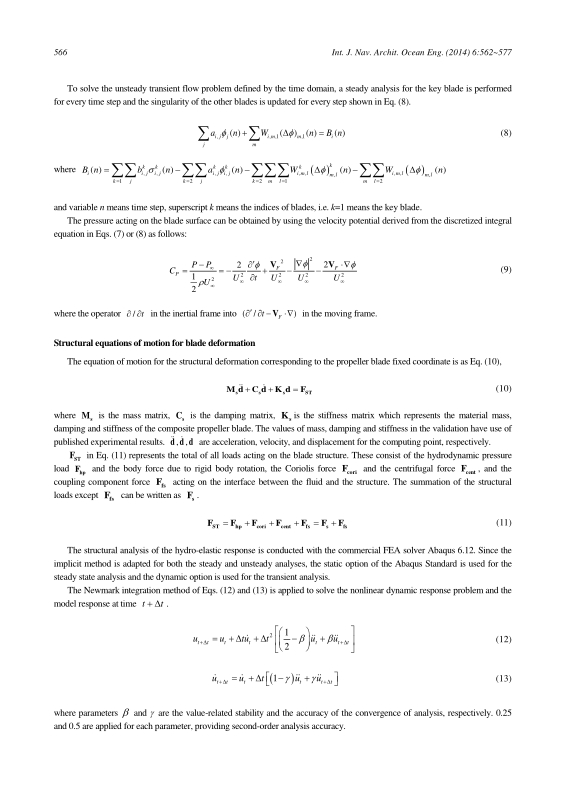

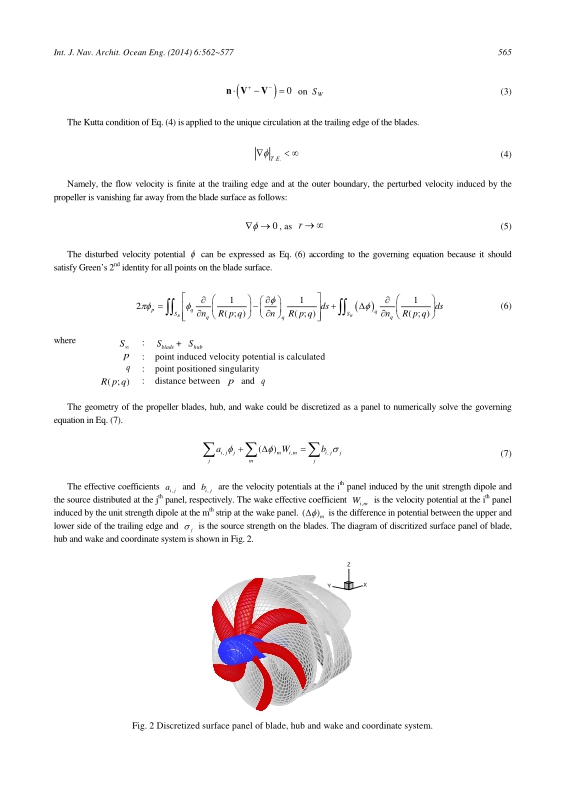

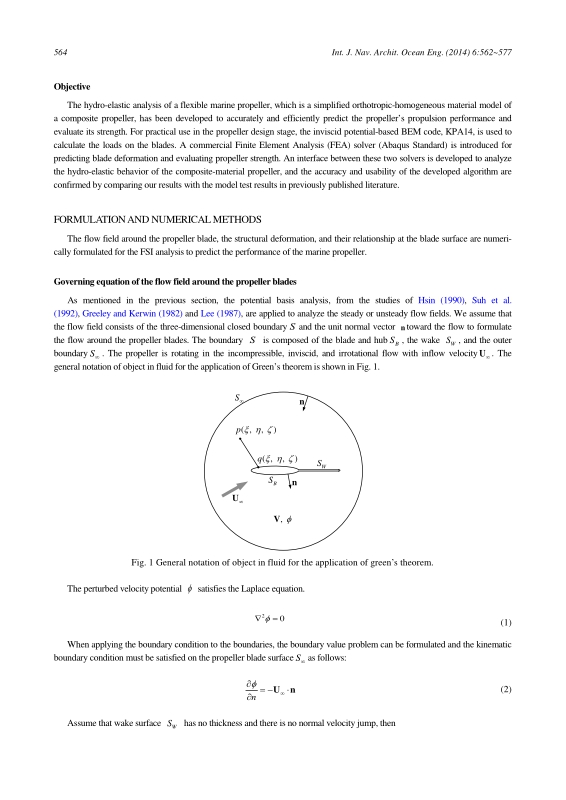

Hydro-elastic analysis of marine propellers based on a BEM-FEM coupled FSI algorithm 이형석, 송민철, 서정천, 장봉준 pp.562-577

Evaluation of spatial pressure distribution during ice-structure interaction using pressure indicating film Hyunwook Kim, Christopher Ulan-Kvitberg, Claude Daley pp.578-597

H∞ filter for flexure deformation and lever arm effect compensation in M/S INS integration Xixiang Liu, Xiaosu Xu, Lihui Wang, Yinyin Li, Yiting Liu pp.626-637

Representing and constructing liquefaction cycle alternatives for FLNG FEED using system entity structure concepts 하솔, 이규열 pp.598-625

Finding the best combination of numerical schemes for 2-D SPH simulation of wedge water entry for a wide range of deadrise angles Mohammad Farsi, Parviz Ghadimi pp.638-651

A study of the kinematic characteristic of a coupling device between the buffer system and the flexible pipe of a deep-seabed mining system 오재원, 이창호, 홍섭, 배대성, 조효제, 김형우 pp.652-669

Ship information system : overview and research trends Sheng Liu, Bowen Xing, Bing Li, Mingming Gu pp.670-684

Dynamic responses of a riser under combined excitation of internal waves and background currents Min Lou, Chenglong Yu pp.685-699

Effects of hull form parameters on seakeeping for YTU gulet series with cruiser stern Ferdi Cakici, Muhsin Aydin pp.700-714

Twisted rudder for reducing fuel-oil consumption 김정현, 최정은, 최봉준, 정석호 pp.715-722

Eco-friendly selection of ship emissions reduction strategies with emphasis on SOx and NOx emissions Ibrahim S. Seddiek, Mohamed M. Elgohary pp.737-748

Study of the sealing performance of tubing adapters in gas-tight deep-sea water sampler Haocai Huang, Zhouli Yuan, Wuchen Kang, Zhao Xue, Xihao Chen, Canjun Yang, Yanying Ye, Jianxing Leng pp.749-761

Mechanical properties and production quality of hand-layup and vacuum infusion processed hybrid composite materials for GFRP marine structures Sang-Young Kim, Chun Sik Shim, Caleb Sturtevant, Dave Dae-Wook Kim, Ha Cheol Song pp.723-736
